Video: speed display (in km/h or mph) configuration

DigiTrains 2.3 available for download

DigiTrains 2.3 new features:

-Speed display in km/h or mph
-Search option in Train list, Accessories and Routes
-Locomotives can be assigned to groups
-New route building logic in dispatcher game

Details:

SPEED DISPLAY IN KM/H OR MPH

The speed of a train can be displayed in speedsteps, in km/h or in mph. To configure the speed display press the speed on Train control menu.

You have four possible choices:

1.   Show speedstep:No speed conversation. Just show the actual speed step.

2.   Automatic: Using a default conversation from speed steps which fits for most of the models. For more accurate speed display please select one of the other options.

3.   Use current speed: start your locomotive and increase the speed until you estimate it goes with 40 km/h (or 25 mph). Then come into this menu and press the tick to match 40 km/h (or 25 mph) for your current speed step. For more accurate speed display please select one of the other options.

4.   Calculate: Measure and select one meter (100cm) on your track (1 meter equals 1.1 yard, which is 1 yard and 1 span approx.). Accelerate your train outside of the selected block to 50% of the speed (to speed 7 in 14 speedstep mode, to speed 14 in 28 speedstep mode, to speed 63 in 128 speedstep mode). Keep this speed and with a stopper measure how much time (in seconds) it takes for the train to go along the 1 meter selected track. Type in the measured time into the editbox below. For more accurate speed display please select longer track. For example you can select 5 meters and measure the time on this longer block. At the end please devide the outcome with 5 (if you used 5 meters). You may also measure the time several times and count average.

Furthermore you can choose the unit of the speed: km/h or mph. These parameters can be set individually for each locomotive. The above mentioned speed display works properly in case of using linear speed settings in locomotive CVs.

SEARCH OPTION IN LISTS

There is a search icon in bottom of the Train list, Accessories and Routes menu. You can filter the list for names or address based on the sort type.

Type in the address or name what you search for. The program will search for names or addresses contains your string. In case of Train list you can filter for groups or moving locomotives, too.

It shows the filtered list in case of any result.

NEW ROUTE BUILDING LOGIC IN DISPATCHER GAME

1.    Turnouts are changed first.

2.   Route path is colored to green on layout editor screen.

3.    Signal belonging to route change to green (free to go).

LOCOMOTIVE GROUPS:

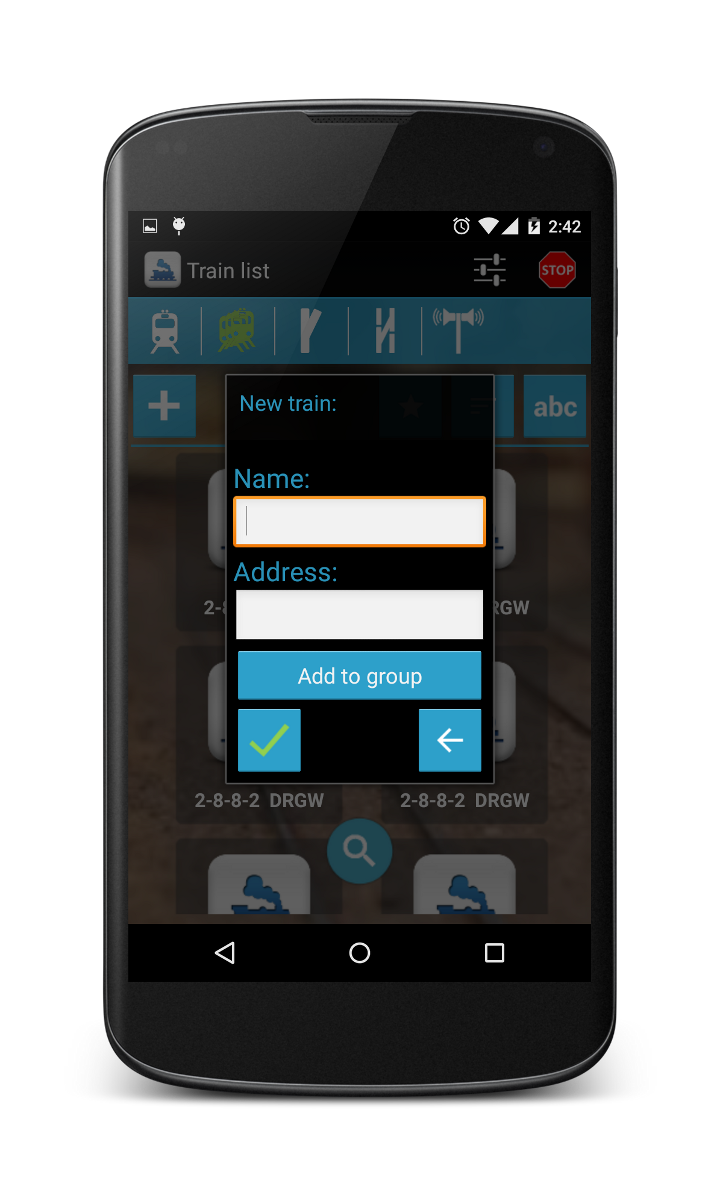

You can assign your locomotives to groups. With this you can filter the train list. In case of adding a new locomotive or changing it there is a button “Add to group”. By pressing this button you can add it to an existing or new group. If you do not select a group it will be assigned automatically to group “All”.

The locomotives downloaded from JMRI will be assigned to the JMRI group if exists. In DigiTrains one train can only belong to one group, so if it is assigned to more groups in JMRI in DigiTrains it will be only showed in the first group.

Module layout for testing DigiTrains

In the last year I not only developed DigiTrains but also created a modular layout to play and for test DigiTrains. The modules are stored in the basement and put together in my living-room for a day in every month. The assemble and disassemble time is approximately 90-90 minutes. 6 person can play at the same time, 2 dispatchers using tablets and 4 engine drivers. Of course we play with DigiTrains, so I can also test the new features.

Full album can be viewed here...
